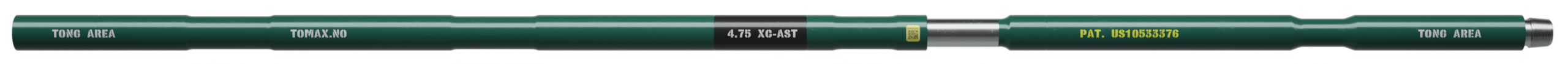

Tomax 4.75”
X-series AST

The “X” means extra flexible and the 4 ¾” OD tool has a comprehensive service history from both multi-lateral producers and exploratory work.

Talk to a product expert
Download fact sheet

Length

5.49 m
18.01 ft

Max. OD

121 mm
4.75”

Min. ID

35 mm
1.38”

Connection

top

NC 38
box

bottom

NC 38
pin

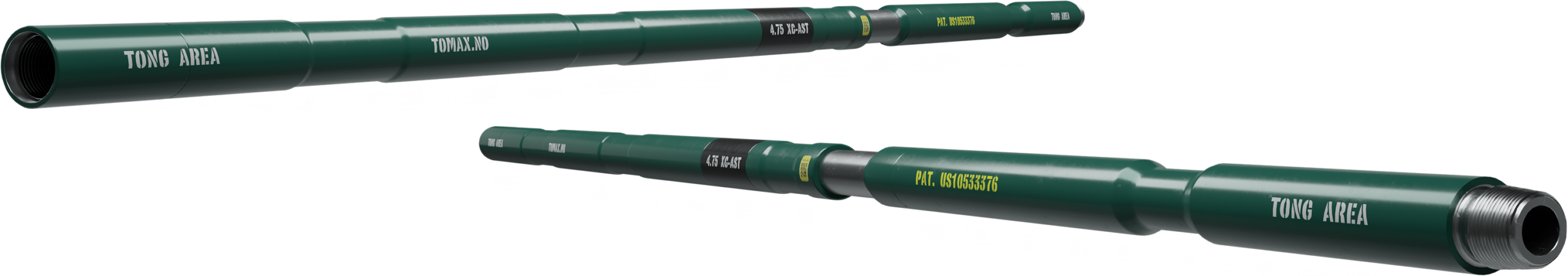

Tomax AST 4.75" seen from both sides

The 4 ¾” X-Series AST has a stroke capacity of 10” or 0.25m and can be configured for all regular drilling operations including work with motors and under-reamers. For extended laterals, the tool can also be configured to better capture and preserve the weight coming through and produce a more constant push on the bit. For vertical drilling, the 4 ¾” X-Series AST not only prevents harmful stick-slip and drilling vibrations, but it also provides a safer way of operating sensitive, tapered drill-strings.

The inner diameter is 1 ½”, which presents no restrictions to relevant drop-balls. The pressure loss through the tool is 150 psi at 350 GPM or 10 bar at 1300 lpm. The tool can also be configured for high temperatures.

The 4 ¾” X-Series presents an exceptional stroke to provide steady loading of the bit even with significant axial stiction in slim laterals.
Image of 4 ¾” X-Series AST High Torque (HT 38) connections Tomax
The 4 ¾” X-Series AST has High Torque (HT 38) connections as an option. Based on its torsional capacity and ability to predictably absorb peak loads the tool can provide a great safety improvement when used as a torsional buffer to protect less capable connections further down in the BHA.
