Drilling of slim diameter laterals in the Southern North Sea carbonates can be troublesome due to friction. In this case a new lateral was drilled in an old field using AST technology.
Tool

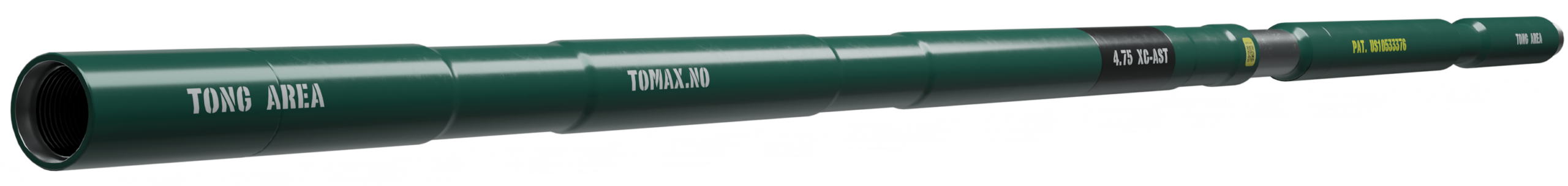

4 ¾” XD-AST
Client
ConocoPhillips
Country
UK
Field
Murdoch
Rig
Ensco 100
Section
6″
BHA
6” (PDC) GeoPilot RSS and Sperry MWD suite
Objective
Adding AST to boost
drilling efficiency
In the process of improving drilling efficiency in the Murdoch field, ConocoPhillips and Sperry Drilling Services decided to add Anti Stick-slip Tool (AST) technology to the rotary steerable system for the 6” horizontal section.
Results
Twice the penetration,
no vibrations
Drilling commenced with fast penetration 30-60% over reference values from the start of the section. Torsional oscillations from pipe friction however placed limitations on the drilling parameters and the operator consequently decided to change the mud to improve the situation. Now the 4 ¾” XD-AST tool could be exploited to its full capacity and the well was drilled to TD with steady penetration > 100% faster than reference values with no vibrations.
Value
Two days saved,
$1 million gained
Improvement in penetration for the section amounted to 2 days at USD 0.5 million daily or USD 1 million for the job.
